Plant Physiology 155: 1851-1870 (2011)

**Regulation of seed germination in the close Arabidopsis relative Lepidium sativum: A global tissue specific transcript analysis**

Karl Morris, Ada Linkies, Kerstin Müller, Krystyna Oracz, Xiaofeng Wang, James R. Lynn, Gerhard Leubner-Metzger, William E. Finch-Savage

School of Life Sciences, Warwick University, Wellesbourne, Warwick CV35 9EF, UK (Ka.M., J.R.L., W.E.F.-S.)
University of Freiburg, Faculty of Biology, Institute for Biology II, Botany / Plant Physiology, Schänzlestr. 1, D-79104 Freiburg, Germany (A.L., Ke.M., K.O., G.L.-M.)
College of Life Sciences, South China Agricultural University, Guangzhou 510642, China (X.W.)
Department of Biological Sciences, Simon Fraser University, 8888 University Drive, Burnaby BC V5A 1S6, Canada (Ke.M.)

Received November 23, 2010; accepted February 7, 2011; published February 14, 2011
DOI 10.1104/pp.110.169706

Supplemental Figure S1. Heat maps showing the expression levels of genes encoding cell wall modification proteins.
A, Expansins, B, XTHs, C, Mannanases, D, Cellulases, E, Hydrolytic enzymes and F, peroxidases.
', *, **, *** indicate that transcript numbers are significantly different between the tissues on +ABA-arrays at P<0.1, <0.05, <0.01, <0.001 respectively. Genes not present in the data sets are coloured grey.

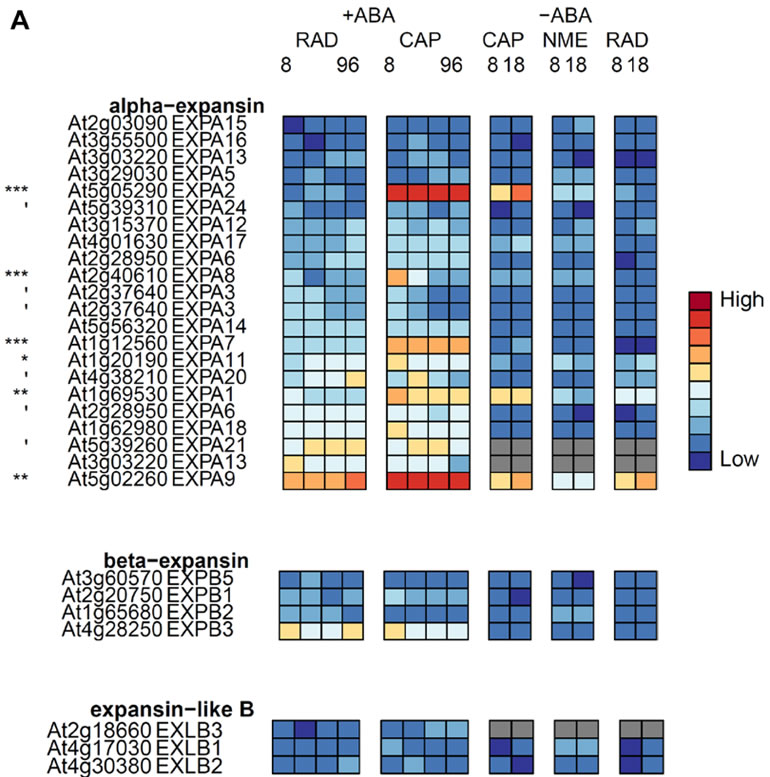

Expansins heat map

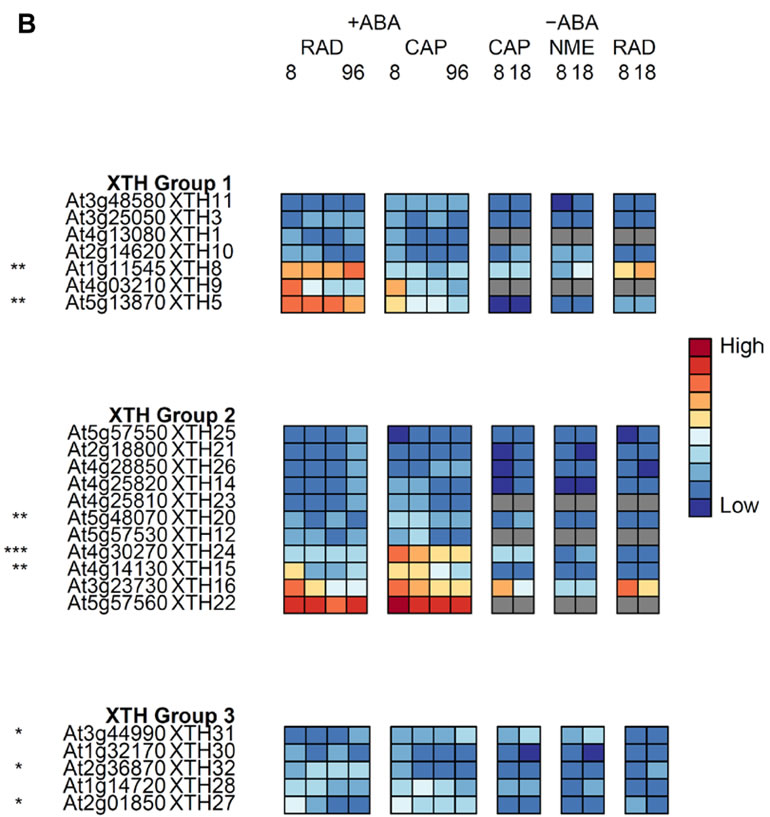

Xyloglucan endotransglycosylase/hydrolases (XTHs) heat map

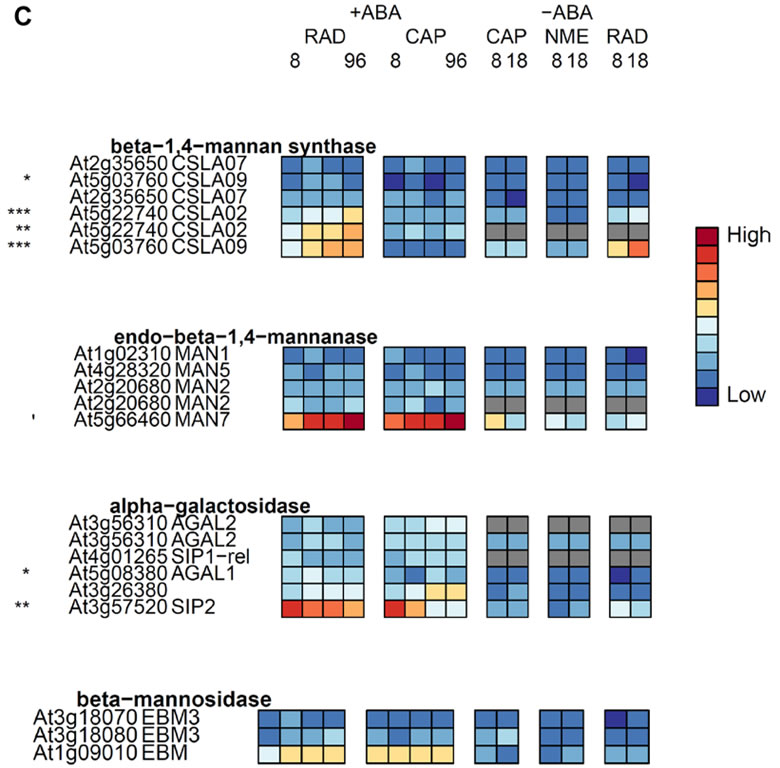

Mannan-related heat map
Mannanase

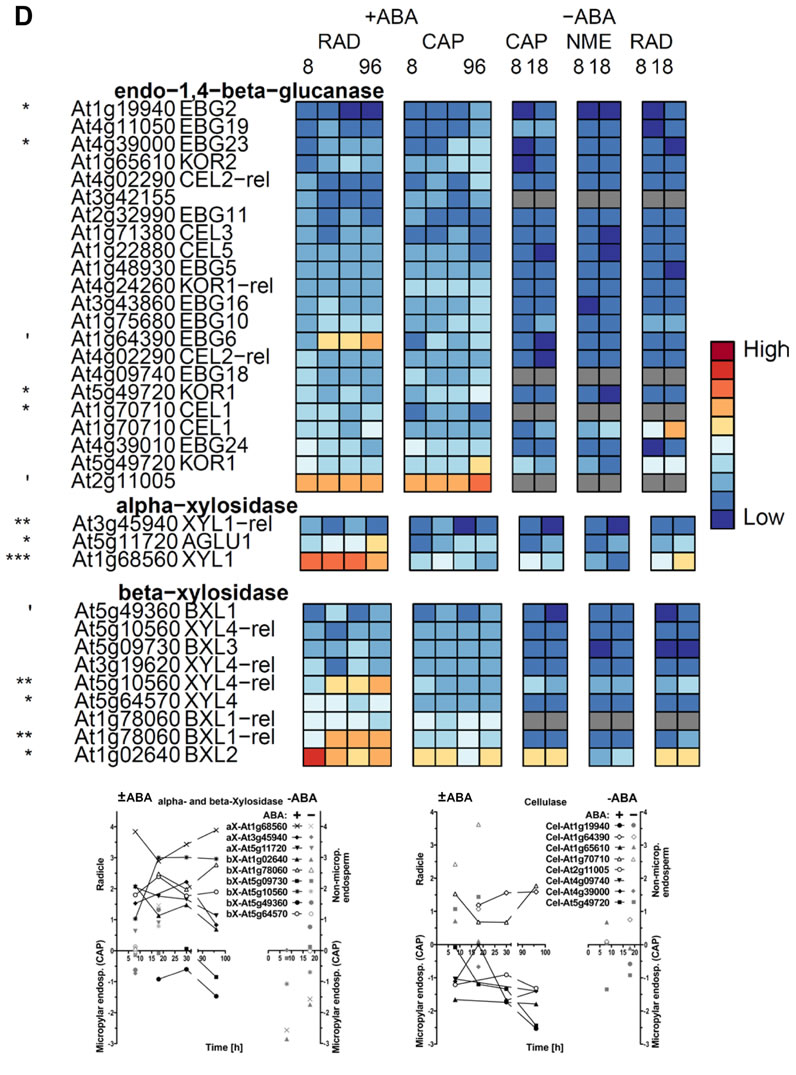

Cellulases and xylosidases heat map

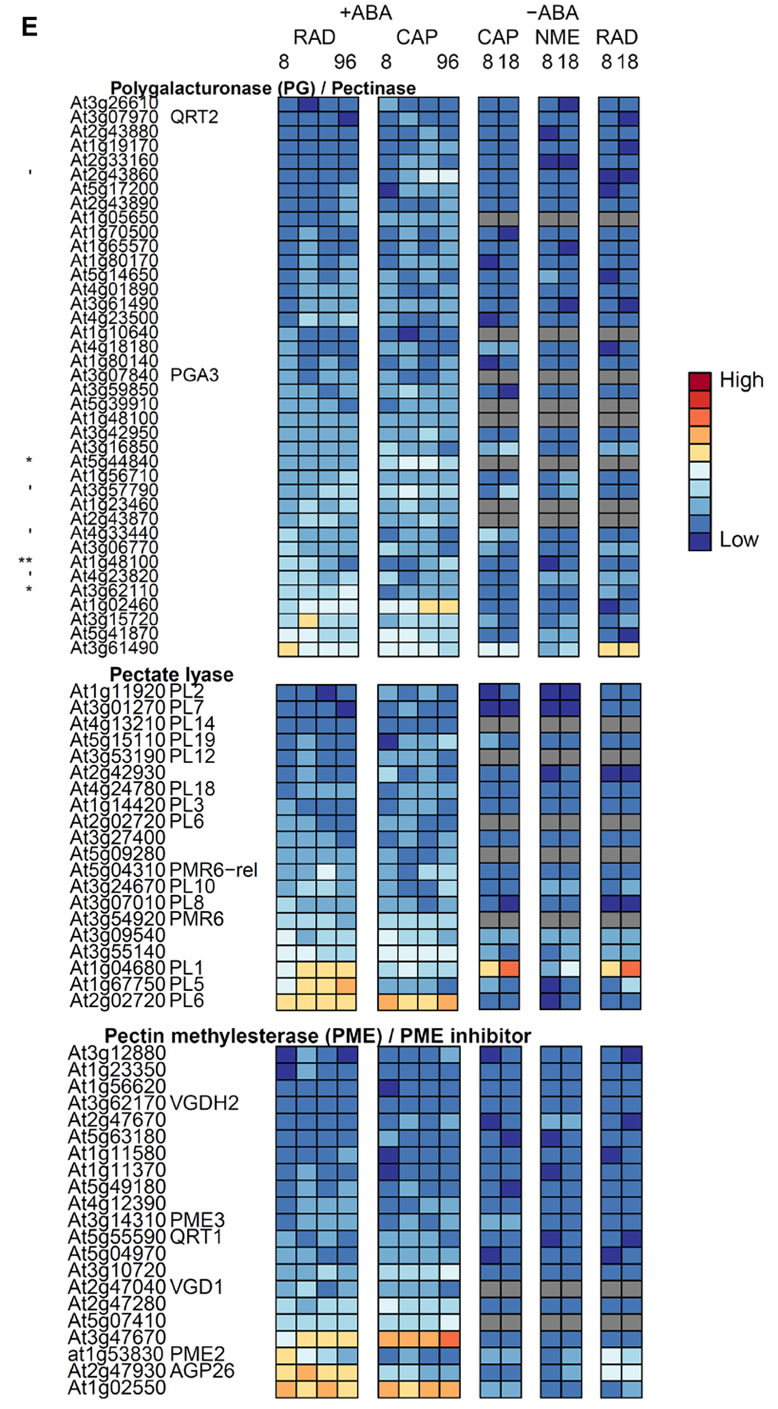

Pectin-related heat map

Pectin-related heat map

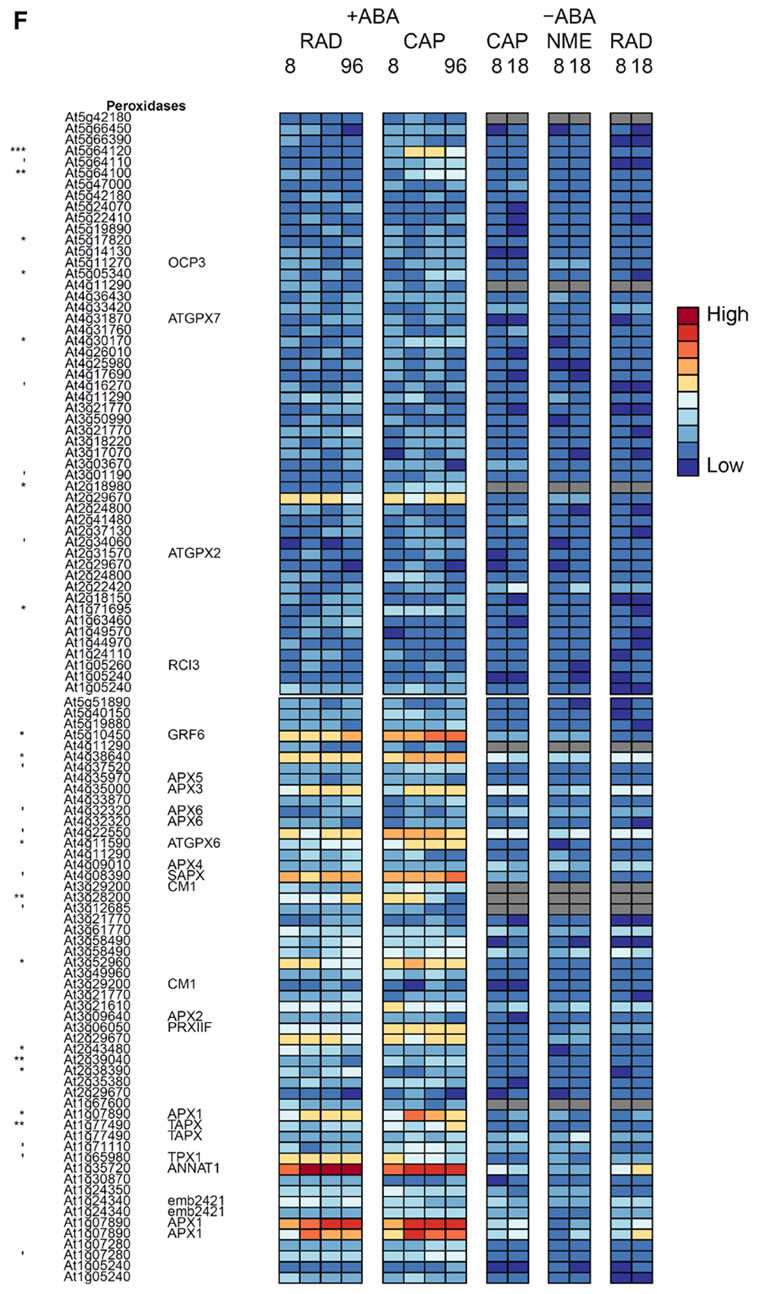

Peroxidases heat map

Supplemental Figure S1. Heat maps showing the expression levels of genes encoding cell wall modification proteins.
A, Expansins, B, XTHs, C, Mannanases, D, Cellulases, E, Hydrolytic enzymes and F, peroxidases.
', *, **, *** indicate that transcript numbers are significantly different between the tissues on +ABA-arrays at P<0.1, <0.05, <0.01, <0.001 respectively. Genes not present in the data sets are coloured grey.
